CEE-16ADefining a new category
Equip your devices with a vendor independent energy and device monitoring solution
- Patent
- pending
- Cellular connectivity
- included
- Connection technology
- toolless
- Maximum Current
- 16 A per phase

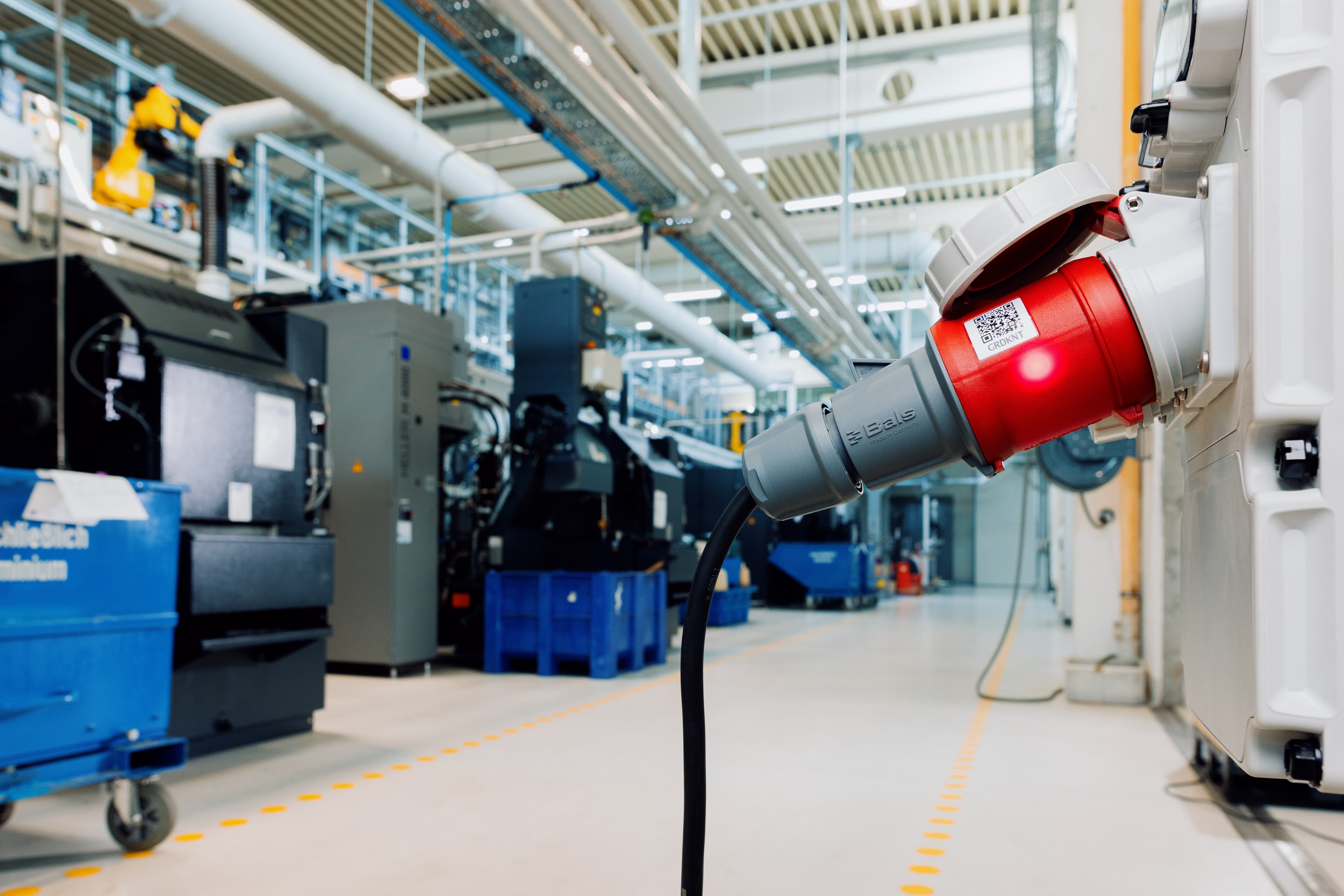

Energy monitoring technology for industrial appliances
The integrated electronics monitors industrial 3 phase consumers and measures various electrical parameters. The Gridknight plug does not need space in your wiring cabinet and is installed within seconds.
Find out more about energy monitoring >
Cellular connection included
The measuring devices connect directly to the internet via their cellular connection. Thanks to modern cellular technologies this is possible even under poor radio conditions like in basements. You do not need to worry about anything - Gridknight takes care of the cellular connection and the included SIM card.
Check network coverage for Germany >
Ready for Industry 4.0 in 3 steps

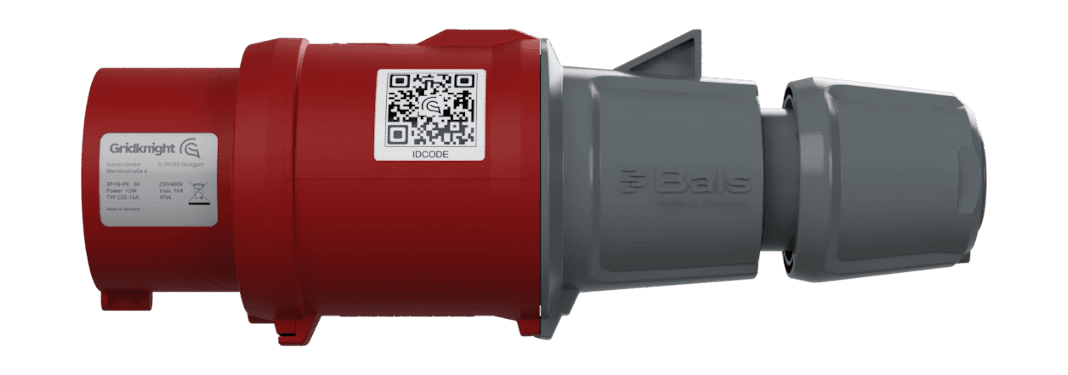

The Gridknight CEE-16A plug includes everything needed for monitoring your devices
- 1. Change plug1. Change plugExchange your old plug with the Gridknight CEE plug
- 2. Pair device2. Pair devicePair the plug with your account by simply scanning the QR code
- 3. Analyze data3. Analyze dataStart monitoring and find out everything about your devices

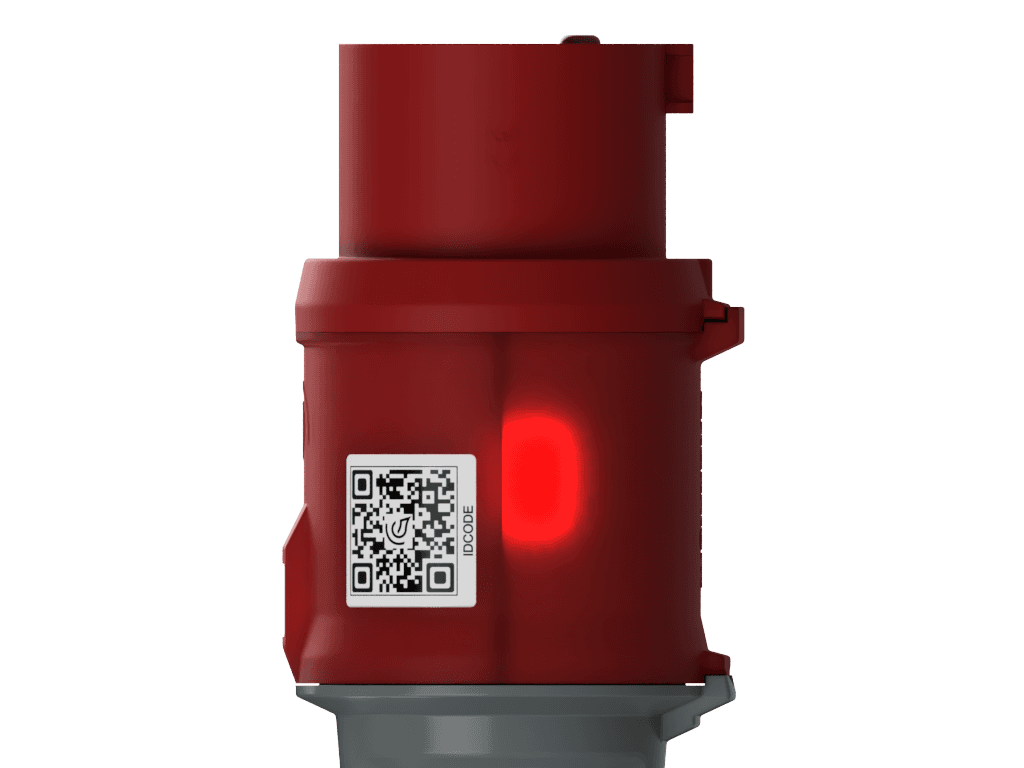

Optical Signaling
If a set thresholds such as the temperature is violated the plug will show an optical notification and indicate that there is a problem
Find out more about device monitoring >

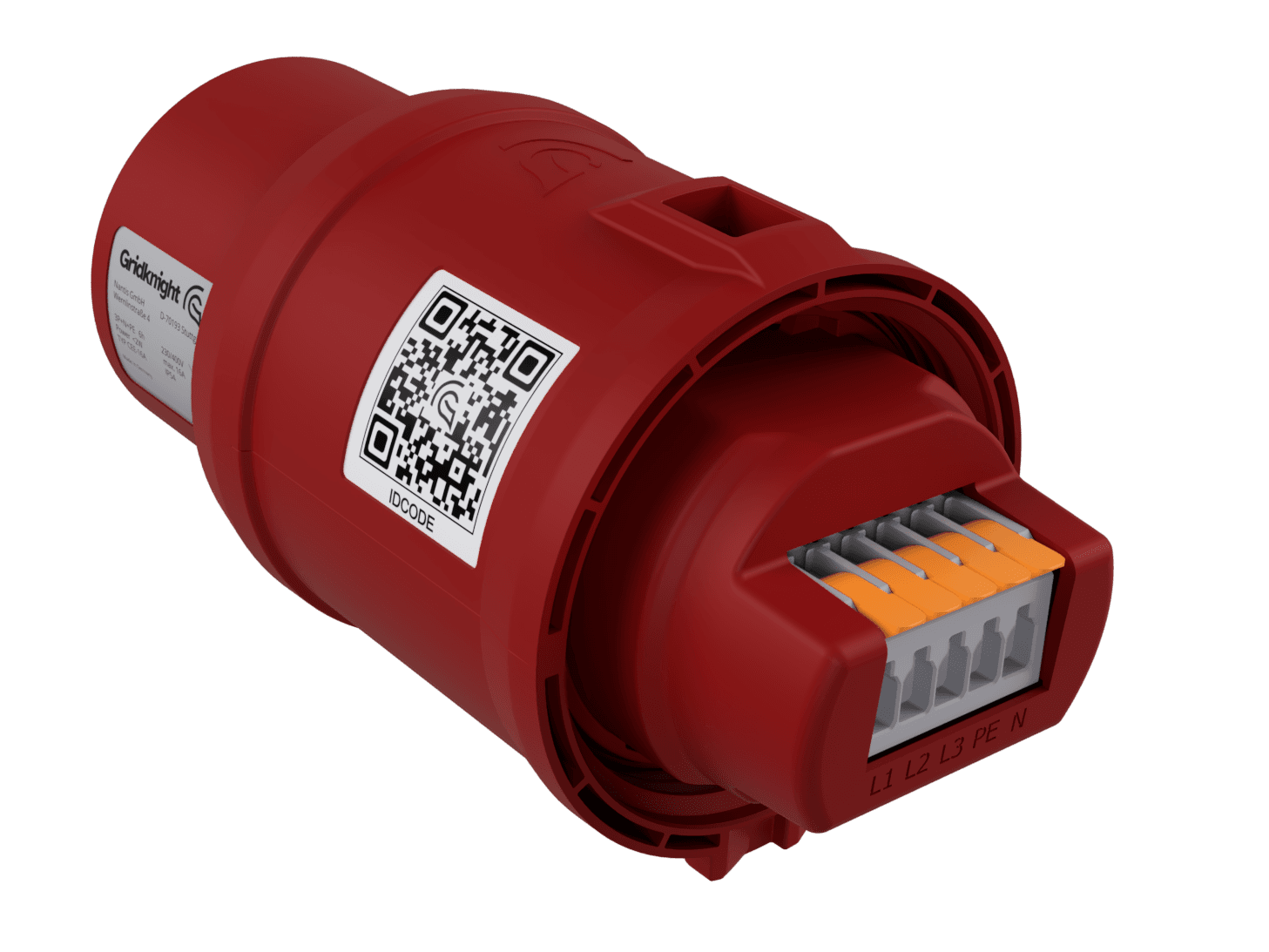

Toolless Installation
You do not need special tools for installation. The screwless spring terminals will take single and finely stranded wires, and finely stranded wires with ferrules. The terminals can be operated manually. The tension relief allows cables with diameters from 10 to 21 mm.
Simply. Well. Connected.
The Gridknight plug is based on the award winning INNOLINQ plug series by Bals which are well known for their robust and high-quality connectors.
You can always rely on the tested quality of this plug even under demanding environmental conditions.
Find out more about INNOLINQ by Bals >
Price and availability
Technical data CEE-16A plug
The plug replaces a standard CEE plug and is therefore compatible with every compliant connector system
- Electrical parameters
- Operating voltage: 3x 230 / 400 VAC (-20 % / +15 %)
- Mains frequency: 50 Hz +-5 %
- Energy consumption < 2 W
- Maximum current 16 A per phase
- Overvoltage category: CAT II
- Energy measurement
- Base current: 5 A
- Activation current: <20 mA
- Accuracy grade active energy: class A
- Ist = 25 mA, Imin = 250 mA, Itr = 500 mA, In = 5 A, Imax = 16 A, fn = 50Hz, Un = 3 * 230 / 400 V (-20% / +15%)
- Connection technology
- Screwless spring terminals
- Tension relief diameter: 10..21 mm
- Stripping length: 9..11 mm
- Single wire: 0,2..2,5 mm
- Finely stranded: 0,2..2,5 mm
- Finely stranded with ferrules: 0,25..2,5 mm
- Cellular technology
- Cellular technology NB-IoT and LTE Cat M1
- SIM card included
- Operating conditions
- Degree of protection: IP54
- Operating temperature: 0..40 °C
- Storage temperature: -20..55 °C
- Humidity: 0 to 75 % RH
- Operating altitude: up to 2000 m
- Size and weight
- Housing material: Polyamide
- Size (LxWxH): 217x71x78 mm
- Weight: 312 g
Materials for download:
Video plug installation (german)
Our measuring devices
The CEE-16A plug does not fit your requirements? We are constantly working on expanding the product family by developing additional devices with the same smart featuresCEE-16A plug
399 €
feature | included |
---|---|
Cellular radio | |
Current range (per phase) | up to 16 ampere |
Smart features | |
External sensors |
CEE-32A plug
feature | included |
---|---|
Cellular radio | |
Current range (per phase) | up to 32 ampere |
Smart features | |
External sensors |

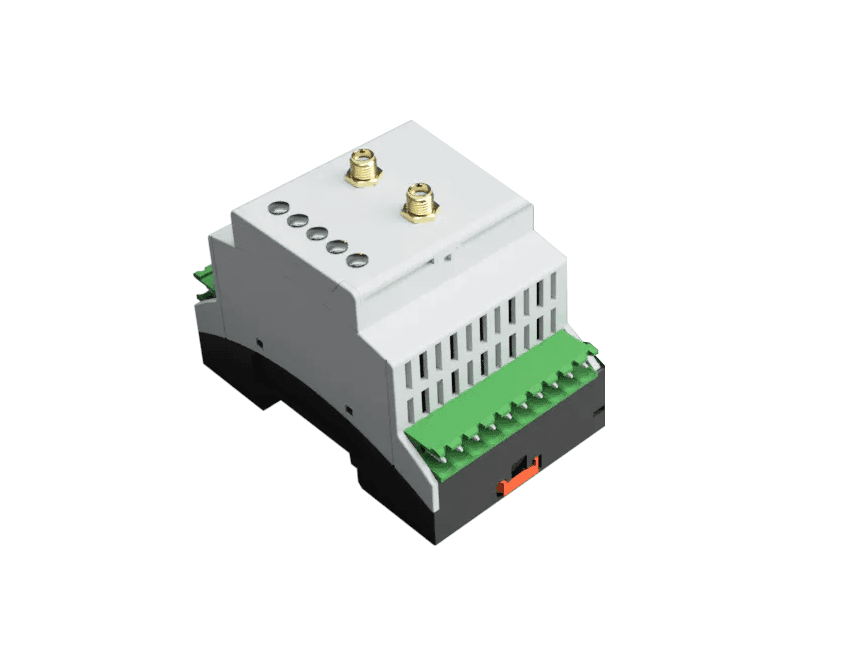

DIN rail meter
feature | included |
---|---|
Cellular radio | |
Current range (per phase) | up to 500 ampere |
Smart features | |
External sensors | Maximum flexibility by using external current transformers. Measuring range can be extended up to 5 kA by using Rogowski coils. |
by feature | CEE-16A plug | CEE-32A plug | DIN rail meter |
---|---|---|---|
Image | |||
Availability | Spring 2023 399 € plus VAT | Summer 2023 | Summer 2023 |
Cellular radio | |||
Current range (per phase) | up to 16 ampere | up to 32 ampere | up to 500 ampere |
Smart features | |||
External sensors | Maximum flexibility by using external current transformers. Measuring range can be extended up to 5 kA by using Rogowski coils. |
